電線電纜保護用軟管

  JSPV-1防水保曲佳軟管,係JSPZ表面上經特殊加工以PVC被覆蓋著,故除保有JSPZ的特性外,有更優秀的防水防潮及耐化學性。故一般使用於屋外露出配管、建設機械、船舶等電器配線。

The JSPV is the same as PZ-4 but is covered with weather-resistant PVC through a special adhesive method including all features of PZ-4 the PV-5 also resistance to corrosion, water and chemicals. The PV-5 can be used for outdoor exposed electric piping construction machinery piping and shipbuilding piping.

單位:±3mm

型號
Cat. No.

公稱管徑

CONDUIT SIZE

內徑

INNER DIAMETER

(mm)

外徑

OUTER DIAMETER

(mm)

每卷長度

LENGTH PER ROLL

(M)

JSPV-1-9#

PF 1/8 (一)

9.2

14.9

50

JSPV-1-11#

PF 1/4 (一)

11.4

17.7

50

JSPV-1-14#

PF 3/4 (一)

14.1

20.6

50

JSPV-1-16#

PF 1/2 (16)

16.6

23.1

50

JSPV-1-23#

PF 3/4 (22)

23.8

30.4

50

JSPV-1-29#

PF 1 (28)

29.3

36.5

25

JSPV-1-37#

PF 1-1/4 (36)

37.1

44.9

25

JSPV-1-49#

PF 1-1/2 (42)

49.1

56.9

25

JSPV-1-62#

PF 2 (54)

62.6

71.5

10

JSPV-1-76#

PF 2-1/2 (70)

76.0

85.3

10

JSPV-1-81#

PF 3 (82)

81.0

90.9

10

JSPV-1-100#

PF 4 (104)

100.2

110.1

5


 防水保曲佳軟管WATERPROOF PLICA TUBE - JSPV-2

JSPV-2型产品研究开发中,敬请期待!

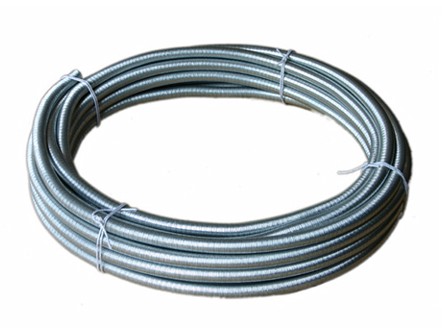

保曲佳軟管PLICA TUBE-JSPZ

  JSPZ保曲佳軟管耐蝕性,耐震強度良好,且有不用車牙、彎曲性、切斷加工容易等優點。一般使用於機械上的電器配管、屋內配管等場合,如果使用於潮濕場合可在其金屬表上加塗油漆,以增加其耐候性。

Excellent features of JSPZ Plica-Tube Resistance to corrosion. Screwing is not necessary. Bendable, can be wounded to any desir-able shape Ease of cutting The JSPZ can be used for electric piping indoor piping. When used for moisture locations, you can coated with paint to extend weather-resistance.

 單位:±3mm

型號
Cat. No.

公稱管徑

CONDUIT SIZE

內徑

INNER DIAMETER

(mm)

外徑

OUTER DIAMETER

(mm)

每卷長度

LENGHT PER ROLL

(M)

JSPZ-9#

PF 1/2 (一)

9.2

13.3

50

JSPZ-11#

PF 1/4 (一)

11.4

16.1

50

JSPZ-14#

PF 3/4 (一)

14.1

19.0

50

JSPZ-16#

PF 1/2 (16)

16.6

21.5

50

JSPZ-23#

PF 3/4 (22)

23.8

28.8

50

JSPZ-29#

PF 1 (28)

29.3

34.9

25

JSPZ-37#

PF 1-1/4 (36)

37.1

42.9

25

JSPZ-49#

PF 1-1/2 (42)

49.1

54.9

25

JSPZ-62#

PF 2 (54)

62.6

69.1

10

JSPZ-76#

PF 2-1/2 (70)

76.0

82.9

10

JSPZ-81#

PF 3 (82)

81.0

88.1

10

JSPZ-100#

PF 4 (104)

100.2

107.3

5
